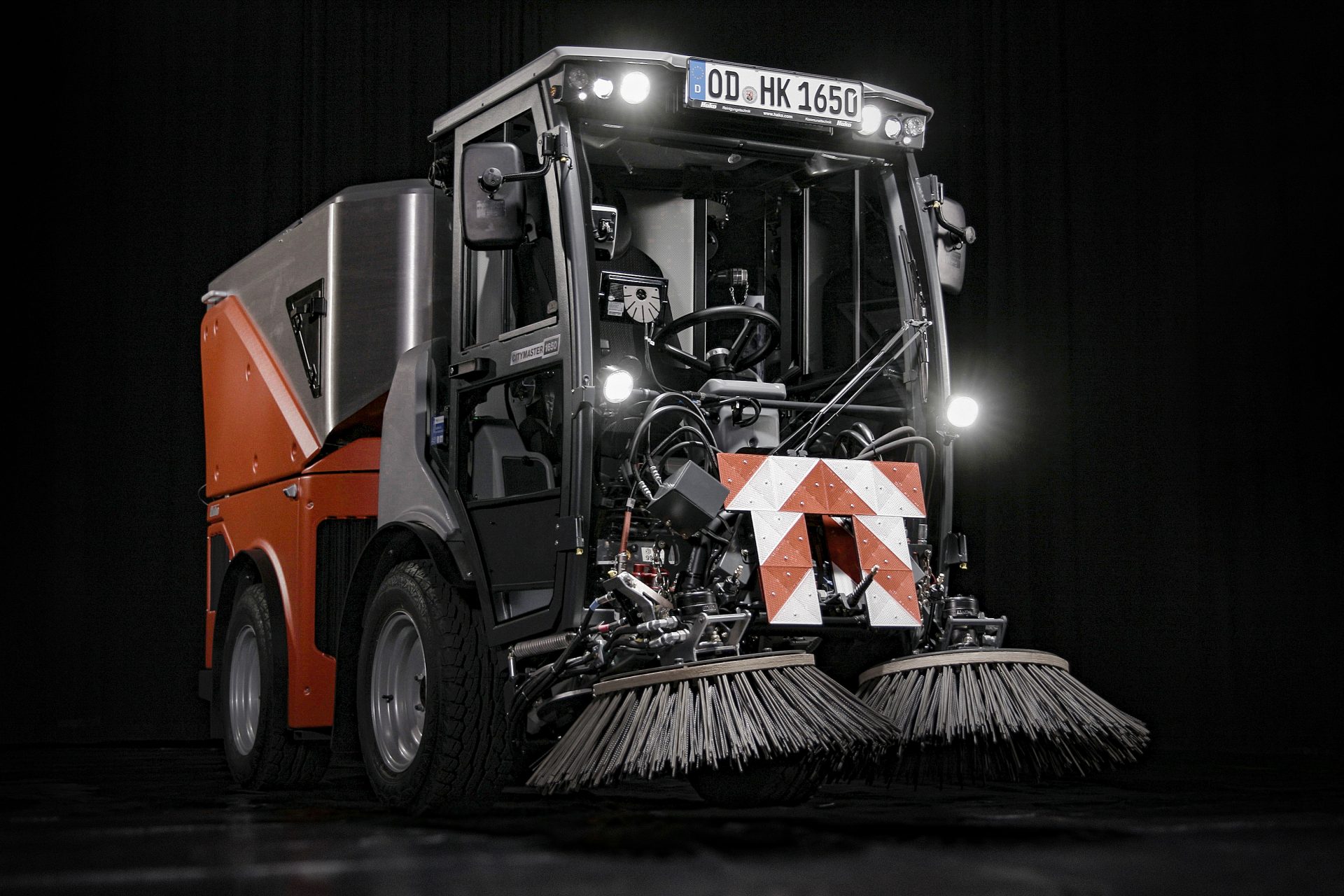

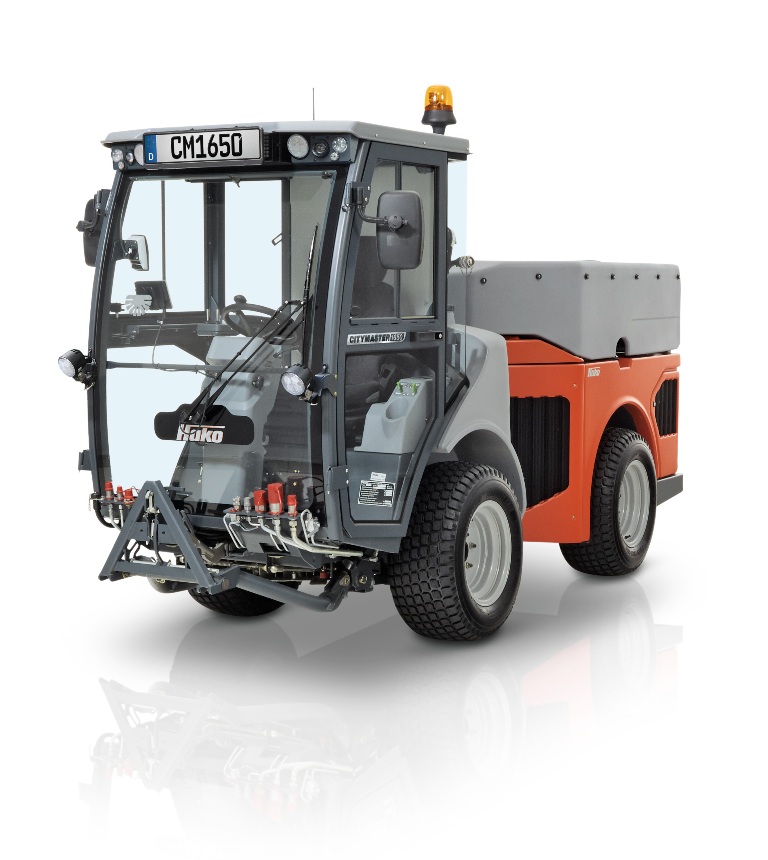

Citymaster 1650
Key Features of the Citymaster 1650
- Energy-saving drive control with speed reduction ensures lowest possible fuel consumption during on-road use
- Multi-purpose application options in combination with the attachment quick-change system
- High-quality quick-change system with robust quick-release fasteners, trolley and storage stands
- This road sweeper has three different performance levels in work mode ECO, Standard, MAX
- Permanent all-wheel drive with automatic slip control provides intelligent adaptation when outdoor cleaning
- Highest levels of manoeuvrability due to the directionally stable, articulated steering
- Comfortable machine control via Hako’s One-hand operating system with 2 joysticks integrated in the armrest
- Directionally stable steering and the smallest turning circle in its class
- Permanent all-wheel drive to combat vast terrains
- Travel speed of 40km/h max
- Overall machine AGR certified
- Professional wet cleaning applications with the CityCleaner (3 brush scrub unit)
- Engine: HATZ 4H50TIC 55 kW @ 2,700 rpm 2016/1628/EC Stage V
The Citymaster 1650 Moves People

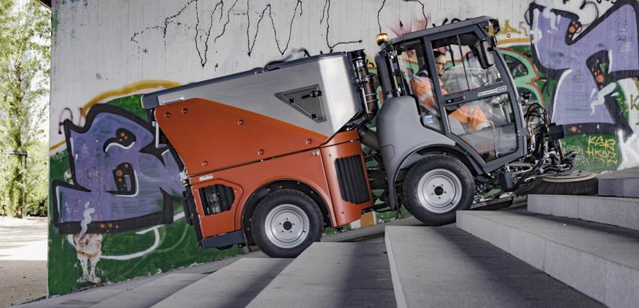

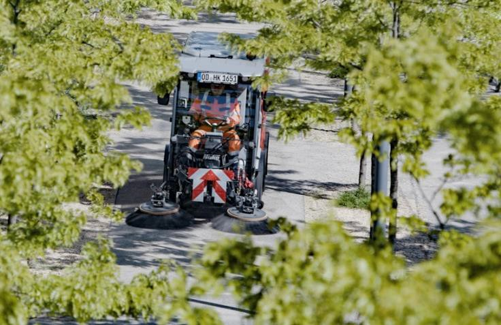

This compact, professional city floor cleaning machine with add-on benefits is setting new standards in the 3.5-t class. The road sweeper’s directionally stable, articulated steering and permanent all-wheel drive combines with the smallest turning circle in the 3.5-t class. This ensures that the new Citymaster 1650 can access almost all areas when outdoor cleaning. Whether used as a road sweeper, a versatile implement carrier for all-season applications or for gardening and landscaping – the new Citymaster 1650 model is equipped with a comprehensive range of innovative features providing more work comfort, safety and efficiency when outdoor cleaning.
One Machine – Even More Possibilities
The further developed version of the successful model, Citymaster 1600 offers a large number of improved features and optional extras. For example, the new road sweeping technology which features even more comfortable broom adjustment options. The broom heads can be adjusted to allow adaptation of the sweeping brooms to the inclination angles of different types of gutter. The floor cleaning machine’s customarily compact design ensures excellent manoeuvrability, even in confined areas. Footpaths with high kerbs are no problem at all for the new Citymaster 1650, nor for the driver – thanks to the full-suspension chassis. Naturally, the floor cleaning machine’s engine complies with the requirements of the Euro V emission standard.
More Work Comfort, Increased Safety
The driver of this road sweeper benefits from the new features as well: Extended seat options and a steering column adjustable for both height and reach. The Citymaster 1650 also features modified foot pedals which enable even more individual adaptation when the driver is outdoor cleaning. The road sweeper also includes certified ergonomics and is AGR quality labelled (from production start). Additional comfort is provided by the optional auxiliary heating system, which can be pre-programmed to heat up both the engine and the cabin during outdoor cleaning in winter. This key feature is also perfect for defrosting the floor cleaning machine’s windows. Daily maintenance work such as oil checks can now be comfortably performed externally, even on vehicles with fix-mounted superstructures.
| Technical Data | Citymaster 1650 |
|---|---|
| Engine | Water-cooled 4-cylinder industrial diesel engine with 1,952 ccm Exhaust gas turbocharging + charge air cooling, particle filter, output 55 kW at 2,700 rpm Common-rail direct fuel injection, tank capacity 50 l Engine comes below the threshold value according to exhaust directive 2016 / 1628 / EC Stage V |
| Road approval | EU type approval basic unit as a tractor (LoF) Drive Traction- and energy-efficient optimized hydrostatic drive with permanent all-wheel drive Drive control system with automatic load regulation in transport mode, 2-speed automatic transmission 3-level fixed rpm in work travel mode (1,600 rpm [ECO] – 2,000 rpm [Standard] – 2,400 rpm [MAX]) |
| Hydraulics | Load-sensing high pressure hydraulics with variable power distribution for rotatory consumers Circuit 1 (front) 0-50/0-70 l/min @ 255 bar Circuit 2 (rear) 0-20/25/30 I/min @ 195 bar Hydraulic circuits at the front, 1 hydraulic circuit at the back |
| Speed | Driving speed automotive 0 – 40 km/h Work travel hydrostatic 0 – 24 km/h Reverse 0 – 12 km/h |
| Steering and chassis | Hydraulic 4-wheel chassis with articulated steering, steering angle 45° Robust articulated joint with maintenance-free PTFE-coated bearings Trailing-arm-guided, suspended front and rear axles, coil springs and hydraulic shock absorbers Stabilizer at the rear axle |
| Brake system | Hydrostatic brake acting on all four wheels, disc brake at the front with load-dependent support via drive control acting on both axles Electrically activated multi-disc stop brake at the rear axle |
| Tyres | 225/70 R15C (M+S road tyres standard) 255/65 R16C (M+S universal tyres § 35 StVO) 320/55-15 (lawn tyres) |
| Cabin | 1 Seater comfort cabin with comfort driver’s seat and operating panel integrated in the armrest Central display showing all the machine’s functions, adjustable steering column Hot-water heating and optional air conditioning Framed doors with sliding windows Folding exterior mirrors, adjustable from the inside |
| Dead weights | 2,035 kg (implement carrier), 2,550 kg (sweeper) Permissible values total weight 3,500 kg, axle load 1,700/2,400 kg (front/rear) |
| Dimensions (H/W/L) | Basic unit: 1,970 mm x 1,210 x 3,830 mm (standard tyres, without tow bar) Sweeper: 1,970 mm x 1,210 x 4,510/5,170 mm (standard tyres 2B/3B) |
| Wheelbase | 1,600 mm |
| Track width | 975–1,055 mm |
| Inner turning radius | 1,290 mm |
