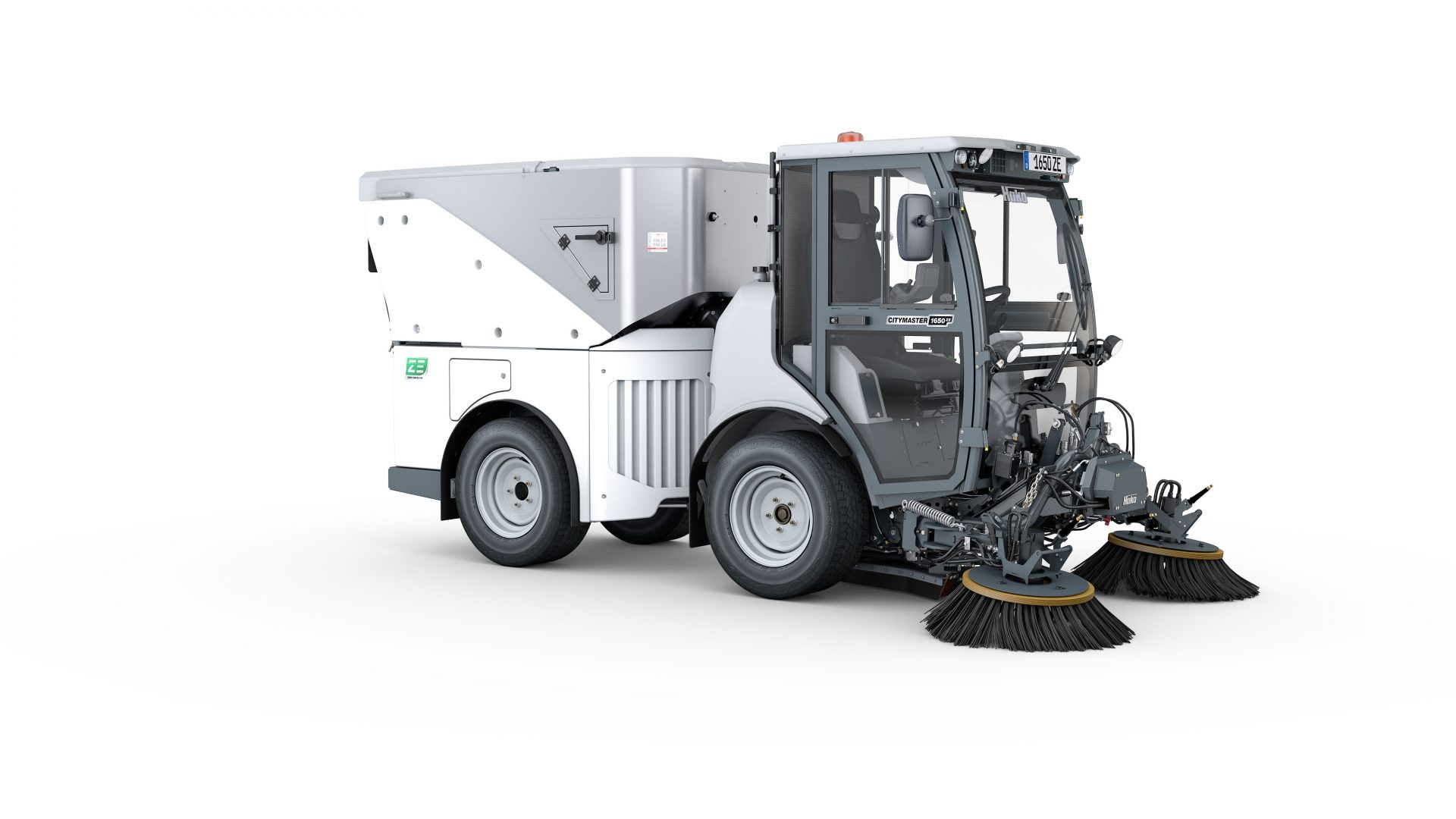

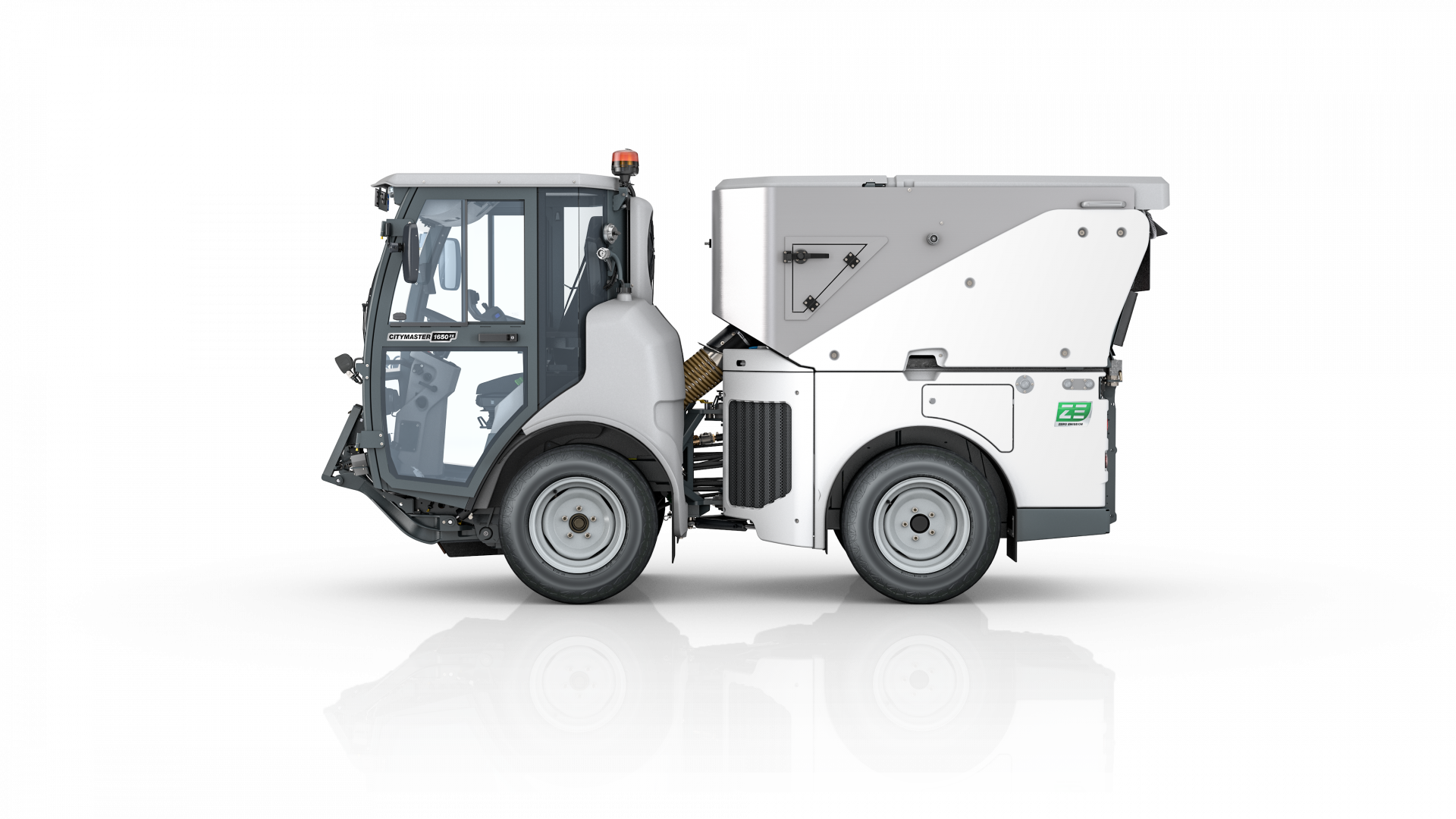

Citymaster 1650 ZE (All Electric)

Key Features of the Citymaster 1650 ZE:

  • Climate-friendly and emission-free
  • Low-noise operation
  • Works up to 9 hours without recharging
  • Spacious cabin for improved ergonomics at the workplace
  • Highly efficient through all-electric drives
  • Articulated steering
  • Comfortable machine control via Hako’s One-hand operating system
  • Travel speed of 40km/h max
  • Overall machine AGR certified
  • Professional wet cleaning applications with the CityCleaner (3 brush scrub unit)
Or Call us on 01788 825600
Description

Citymaster 1650 ZE (All Electric)

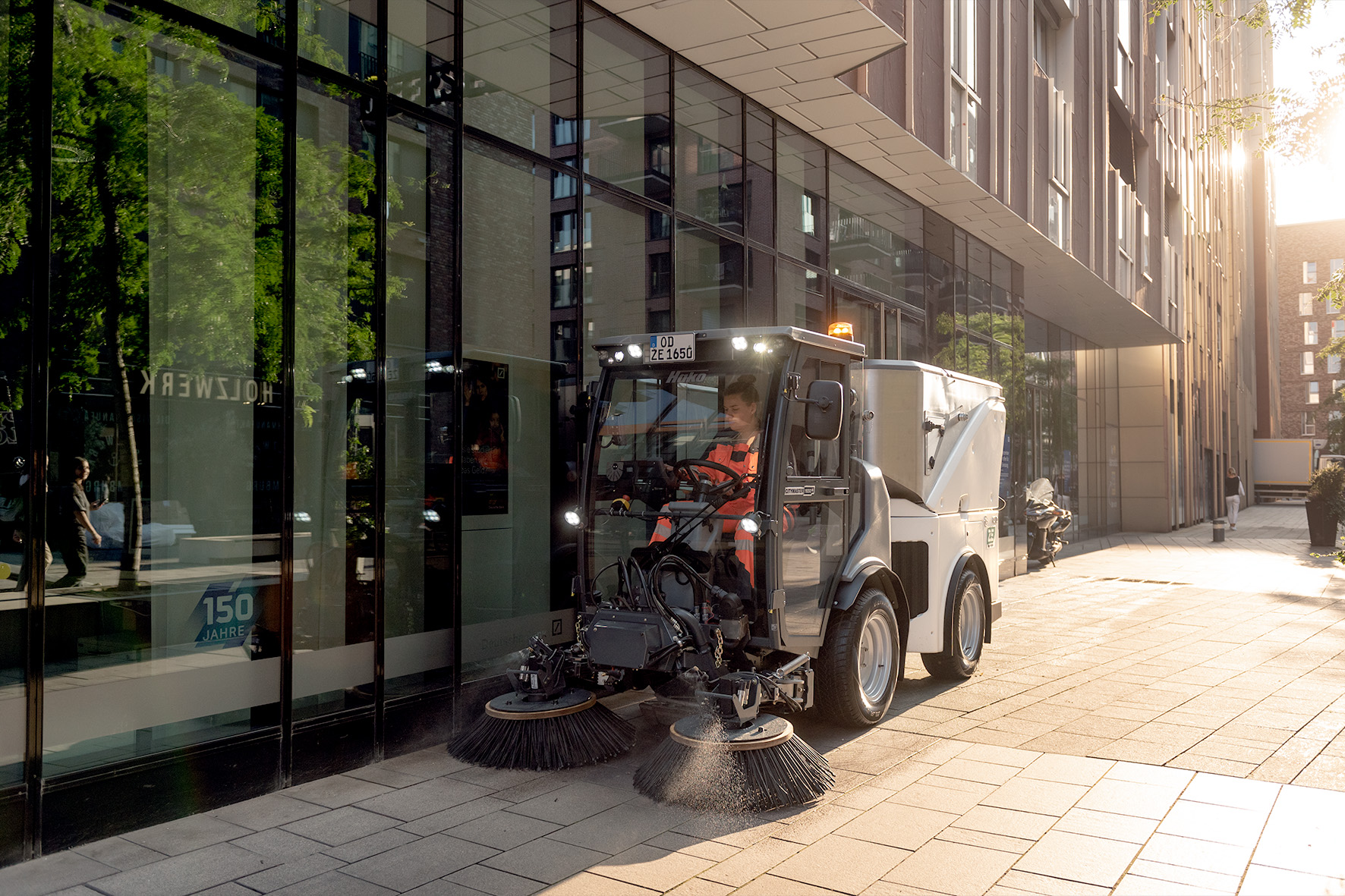

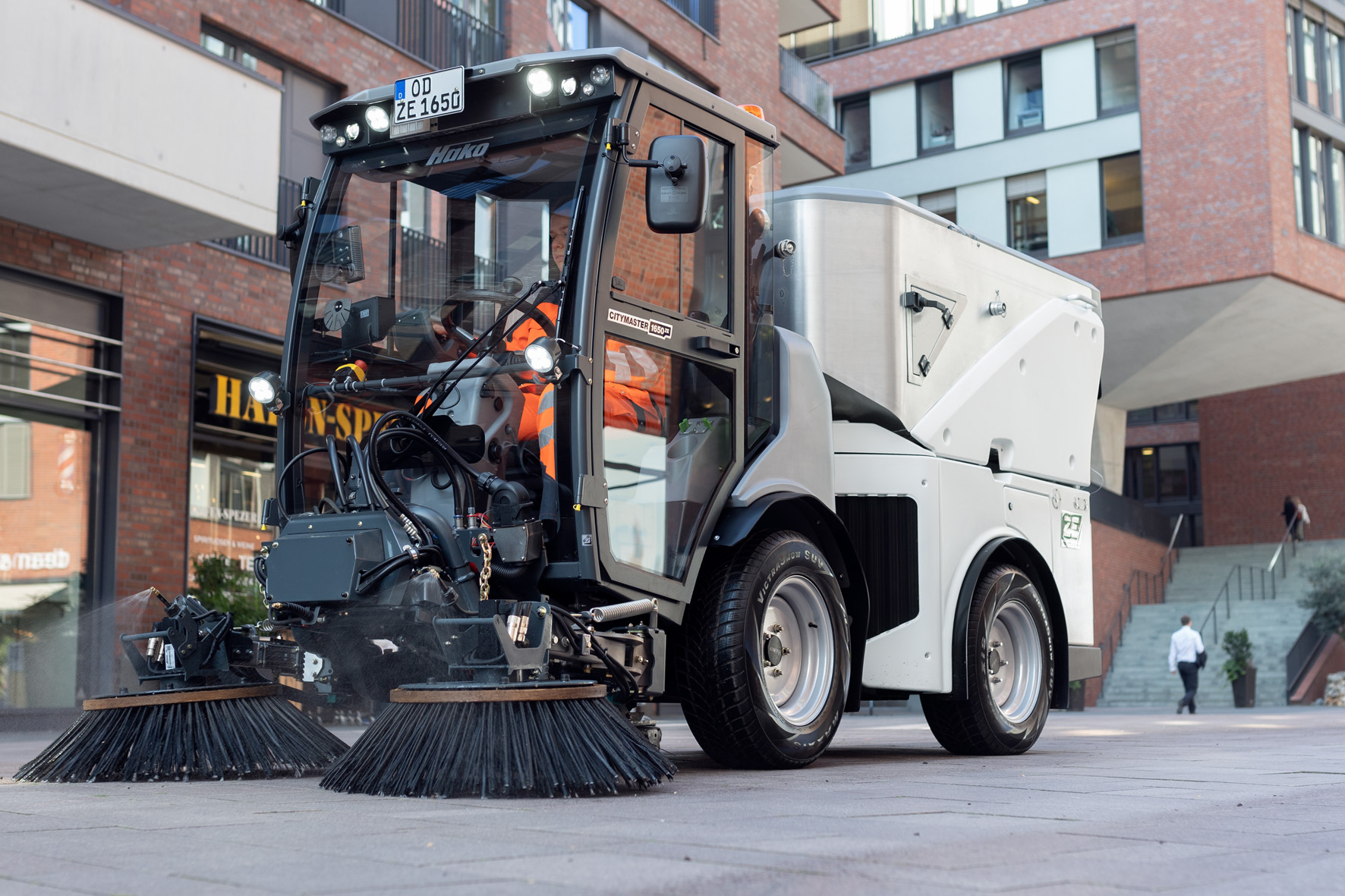

The brand new all-electric Citymaster 1650 ZE affords all the performance excellence of the Citymaster 1650 but with added environmental benefits and efficiency. Equipped with all-electric components, the ZE makes your fleet of municipal vehicles climate-friendly and sustainable, whilst guaranteeing reliably excellent cleaning results and emission-free operation. While noise and particulate emissions are reduced to a minimum, the new Citymaster 1650 ZE provides maximum efficiency, user comfort and safety.

Providing up to nine hours of working without recharging, the Citymaster 1650 ZE is well equipped for extended operations, and – with its top speed of up to 40 km/h, quickly gets to the next job site or the nearest charging station for rapid, safe and uncomplicated recharging.

This all-electric city floor cleaning sweeper in the 3.5-t class is much quieter than municipal machines with combustion engines, which makes the ZE ideal for working in noise-sensitive environments, e.g. near schools or hospitals, or even working at night.

Equipped with clever details, the Citymaster 1650 ZE offers significantly increased driving and operating comfort: for example, thanks to the cabin design with many ergonomic features – from the steering column to the driver’s seat. All functions can be controlled at just the push of a button via Hako’s one-button operating system integrated in the armrest. And the large display provides at-a-glance information on all relevant operating data.

Technical Data
Technical DataCitymaster 1650 ZE
Engine and Drive Drive /Battery system (HV)
• All-electric, multifunctional work machine with high-voltage lithium-ion traction battery
• Usable capacity 55 kWh (SOC 0–100 %) (1), system output up to 50 kW
• Machine running time up to 9 hours of operation (2)
• On-board charger up to 22 kW, charging time for total battery capacity 2.5–3 h (3)
• Charge connector IEC 62196 Type 2
Approval • EU type approval for the basic unit as a tractor T2a (LoF) (agricultural and forestry machine)
Ground drive (HV) • All-electric ground drive via 2 rear-wheel motors (2 x 10 kW (S1) / 40 kW maximum output (S8))
• Automatic load and slip compensation, dynamic load control
• 1 accelerator pedal with F/R switch integrated in the armrest
Driving and working characteristicsSpeed and climbing ability:
• Driving speed 0–40 km/h
• Work-travel speed 0–24 km/h
• Reverse 0–12 km/h
• Climbing ability 25 %

Hydraulic system (HV) • Demand-controlled high pressure hydraulics with high-voltage drive supplying the steering system and the actuating shafts of both the vehicle and the attachments
• Hydraulic hand pump for emergency actuation (hopper)
Attachment drives (48 V)• All-electric attachment drives with 48 V / 10 kW (2 x 5 kW or 1 x 10 kW summation circuit) system output for rotary front and rear-mounted attachments
• Quick-couplings (one-man operation) at the front and rear of the vehicle provide power supply for the attachments and the attachment control system (as part of the quick-change system)
Steering and chassis • 4-wheel chassis with maintenance-free articulated joint
• Fully hydraulic steering with 45o steering angle
• Spring-suspension chassis with coil springs and shock absorbers at the front
• Attachment quick-change system
Braking system • Hydraulic dual-circuit disc brake acting on all 4 wheels
• Wear-free auxiliary brake (via ground drive), with adjustable recuperation
• Electro-magnetic parking brake acting on the rear axle
Tyres• 255/65 R16C (M+S universal tyres 35 StVO, German Road Traffic Act)
Cabin• ROPS-tested 1-person safety comfort cabin
• Electrically heated windscreen, electric heating system and air conditioning (HV)
• 2 frame doors with sliding windows, completely foldable wing mirrors
• Driver seats and safety belt systems, see options
• Multi-adjustable steering column, see options
• Multifunctional display for the machine control system / current operating states
• 1-hand operating system integrated in the armrest
Load values Empty weights:
• 2,100 kg (implement carrier), 2,630 kg (sweeper)
Permissible values:
• Total weight 3,500 kg, axle loads 1,700/2,400 kg (front/rear)
Dimensions (H/B/L )• Basic unit: 1,970 x 1,280 x 3,830 mm (universal tyres, without trailer-towing device)
• Sweeper: 1,970 x 1,280 x 4,510/5,170 mm (standard tyres 2B/3B)
Wheelbase 1,600 mm
Track width 975 – 1,055 mm
Inner turning radius 1,290 mm
